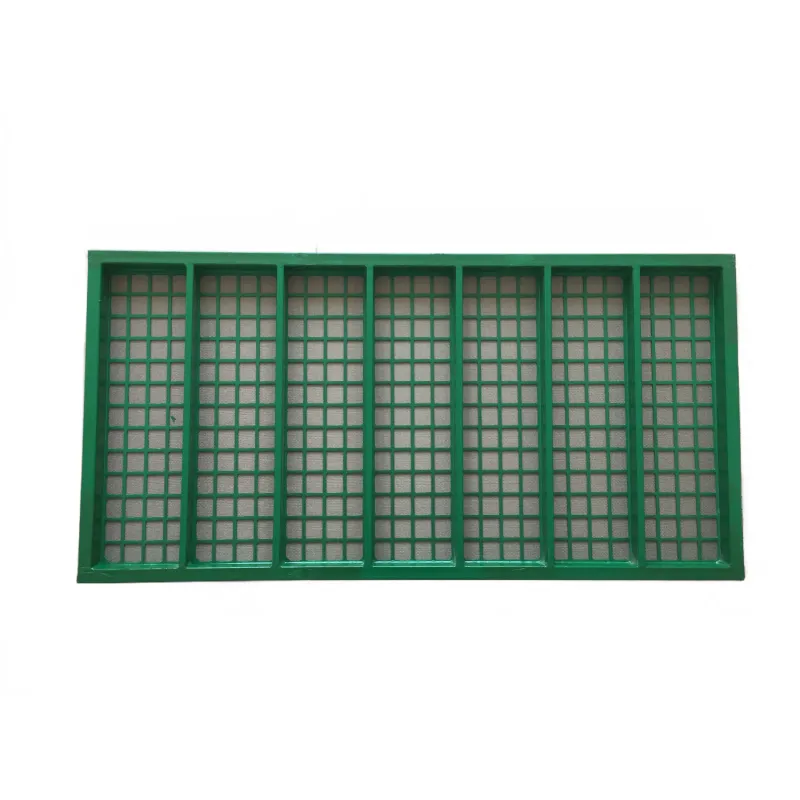

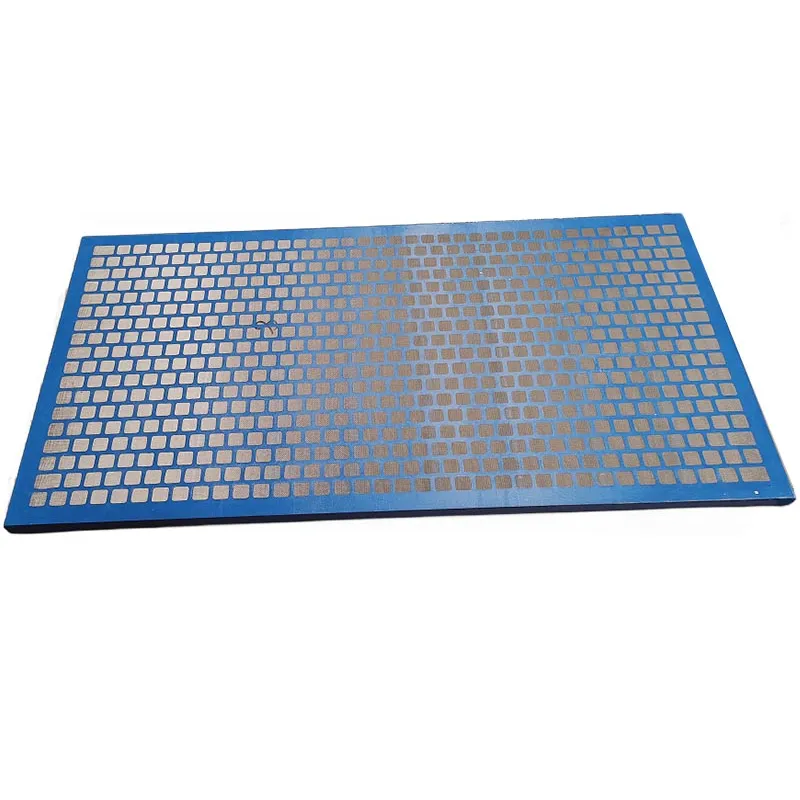

Steel Frame Shale Shaker Screen
Steel frame shale shaker screen consists of two or three layers of stainless steel wire mesh. Its supporting layer and working layer bonded together to make the screen more durable. The whole screen is divided into many independent small meshes to prevent the excessive extension caused by partial damages. Meantime, the specialized rubber plugs can repair timely. This effectively saves time and reduces disposal costs.
Compared with flat shaker screen and hook strip flat screen, steel frame shale shaker screen has higher strength and better abrasive resistance. The high strength steel frame and supporting grids of the screen forms a reliable and stable structure. Thus greatly increases the shaker screen's loading capacity and operational efficiency.
- High strength, not easily to be damaged and deformed.
- High-strength steel frame, improve bearing capacity.
- Effective panel pressure distribution system.
- Multi-layer steel wire cloth. Better filtering effect.
- Wear resistance, corrosion resistance.
- Available in various colors.
- Easy to install and repair.
- Lower overall operational cost; economical.
- Material:stainless steel wire mesh.
- Hole shape:
- Screen layers:two or three.
- Colors: black, blue, red, green, etc.
- Standard:ISO 13501, API RP 13C, API RP 13C, GBT 11648.
|
Specifications of Steel Frame Screen |
|||
|
Screen Model |
Range of Mesh |
Dimension (W × L) |
Brand & Model of shaker |
|
SFS-1 |
20–325 |
585 × 1165 mm |
MONGOOSE |
|
SFS-2 |
20–325 |
635 × 1253 mm |
KING COBRA |
|
SFS-3 |
20–325 |
913 × 650 mm |
VSM300 |
|
SFS-4 |
20–325 |
720 × 1220 mm |
KTL48 Series |
|
SFS-5 |
20–325 |
712 × 1180 mm |
D380 |
|
SFS-6 |
20–325 |
737 × 1067 mm |
FSI 50 & 500 & 5000 |
|
The replacement screens can be specifically designed to fit various shale shakers. Specifications can be customized according to your needs. |
|||
Steel frame shaker screen is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, oil industry, drilling operations, solid control system.
-
