3D Shaker Screen

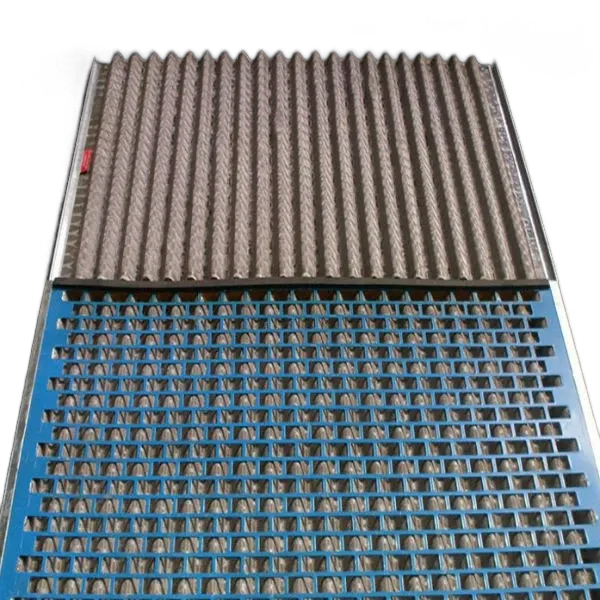

3D shaker screen also called three-dimensional shale shaker screen or wave shale shaker screen. It is a new type of replacement screen, which has a single-side screen compression system. This product is an innovation in the shaker screens field. Its mesh sizes are smaller and thinner than that of the steel frame shaker screen. The fine mesh sizes maximize the solids removal capabilities of the screen. It is suitable for various types of shakers, such as, linear motion shale shakers, elliptical and circular motion shale shakers.
Compared with the hook strip flat screen and hook strip soft screen, 3D shaker screen has more available screening non-blank areas. Test has shown that, due to the screen’s corrugations, the capacity of the shaker gets about a three-fold improvement, while the screen still maintains the equivalent cut-point level of the flat shaker screen. It’s application reduces the number of shakers. Therefore, less space and less cost are realized. Three-dimensional shaker screen is absolutely a superior replacement screen for shale shakers.
- Resistant to absorption, high temperature and corrosion.
- Larger area, higher quality.
- Improve the hardness of the vibrating screen and reduce mud loss.
- Scientific and reasonable cost control system, competitive prices.
- Higher flow rates without sacrificing cut point integrity.
- More non-blanked screening area; faster flow rate.
- Improved screening structure, higher loading capacity.
- Enhanced permeability; higher screening efficiency.
- Smaller mesh sizes; better solid-liquid separation.
- Flexible to use; fit for various types of shakers.
- Screen material:stainless steel wire mesh.
- Frame material:carbon steel.
- Screen type:wave shale shaker screen.
- Hole shape:
- Screen layers:two or three.
- Colors: black, blue, red, green, etc.
- Standard:ISO 13501, API RP 13C, API RP 13C, GBT 11648.
|
Technical Parameters of 3D Shaker Screen |
||||||
|
Item |
Mesh |
Dimension(L × W) |
Approx Weight |
Screen Layer |
Screen Material |
Frame Material |
|
PSS-1 |
API 20–400 |
1050 × 695 mm |
6.6 kg |
2 or 3 |
SS 304/316 |
carbon steel |
|
PSS-2 |
API 20–400 |
1053 × 697 mm |
5.6 kg |
2 or 3 |
SS 304/316 |
carbon steel |
|
PSS-3 |
API 20–400 |
710 × 626 mm |
4.8 kg |
2 or 3 |
SS 304/316 |
carbon steel |
|
PSS-4 |
API 20–400 |
567 × 1070 mm |
5.2 kg |
2 or 3 |
SS 304/316 |
carbon steel |
|
Note: Other specifications also can be customized. |
||||||

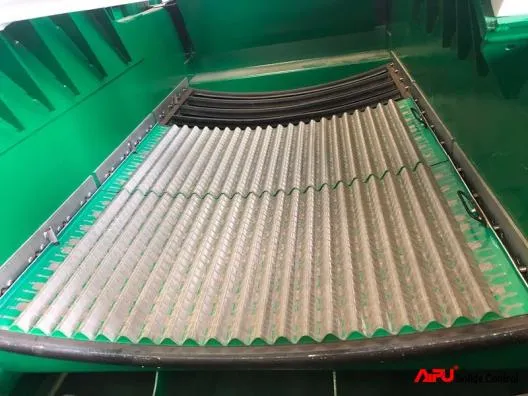

3D shaker screen is used as replacement screen for various shakers. It is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, oil industry, drilling operations, solid control system.
-

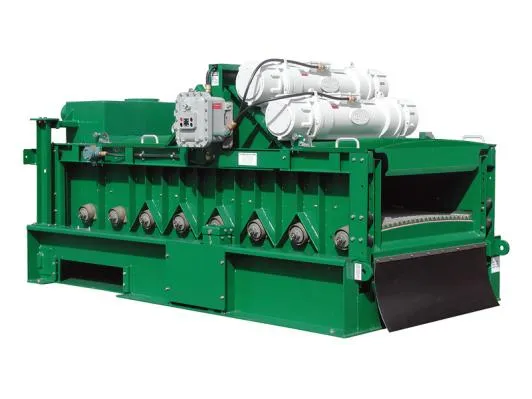

3D Shale Shaker Screen Machine -
3D Shale Shaker Screen Machine
