Composite Frame Shaker Screen

Short Description:

Composite frame shale shaker screen has fine mesh sizes, good filter fineness and high screening efficiency. It is widely used in solid-liquid separation.

Send email to us PDF Download

Product Detail

Product Tags

Introduction

Read More About shale shaker screen material

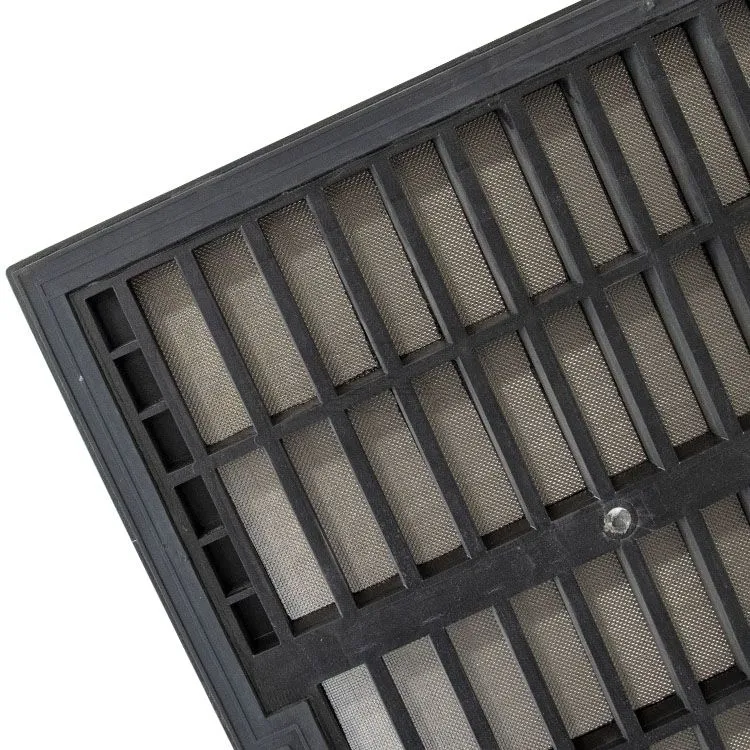

Composite frame shale shaker screen is consist of stainless steel wire screen and high strength composite material frame. composite frame screen has better filtering effect. Stainless steel wire screen is made of two or three layers stainless steel wire cloth that have different meshes. Different layers have different density. Arrange these layers appropriately can optimizes the screen's performance.

Composite frame shale shaker screen is widely used to filter out the solid phase and other impurities in drilling mud. The polyurethane material frame structure of this type shale shaker screen ensures the screen's high strength and good abrasive resistance. It also has convenient replacement feature, specialized rubber plug repair system effectively reduces the downtime of the shaker machine.

Feature

Specialized rubber plugs repair system.
Good filter fineness; high screening efficiency.
Durable and reliable structure; lower screen replacement cost.
High operational efficiency; good solids control performance.
Good stability; easy to maintain.

Specification

Material:stainless steel wire mesh and composite material frame.
Hole shape:
Screen layers:two or three.
Colors: composite material in black or red color..
Standard:ISO 13501, API RP 13C, API RP 13C, GBT 11648.

Specifications of Composite Frame Screen
Screen Model	Range of Mesh	Dimension (W × L)	Brand & Model of shaker
CFS-1	20–325	585 × 1165 mm	MONGOOSE PT & PRO
CFS-2	20–325	585 × 1165 mm	MONGOOSE PT & PRO
CFS-3	20–325	635 × 1250 mm	KING COBRA & COBRA
CFS-4	20–325	635 × 1250 mm	KING COBRA & COBRA
CFS-5	20–325	610 × 660 mm	MD-2 & MD-3
The replacement screens can be specifically designed to fit various shale shakers. Specifications can be customized according to your needs.

Application

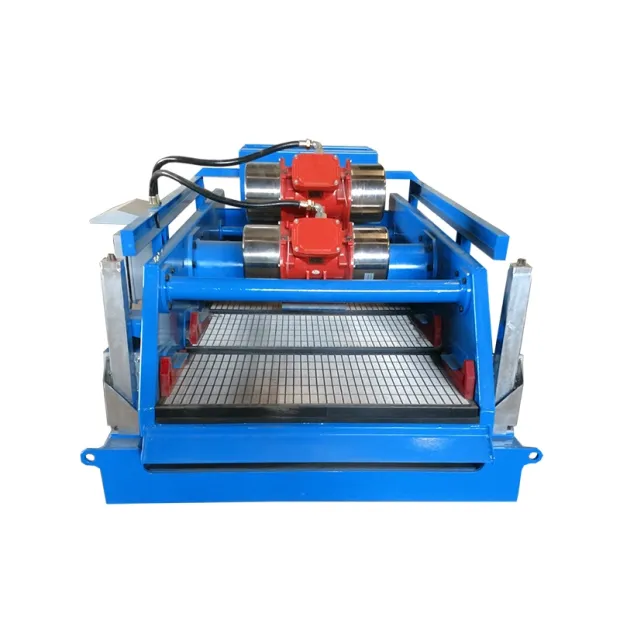

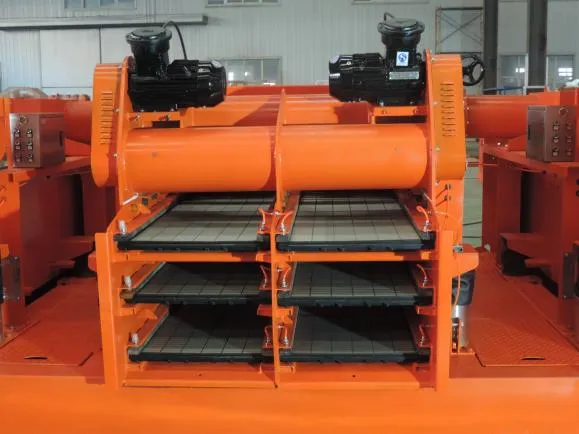

Composite frame shaker screen is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, oil industry, drilling operations, solid control system.
