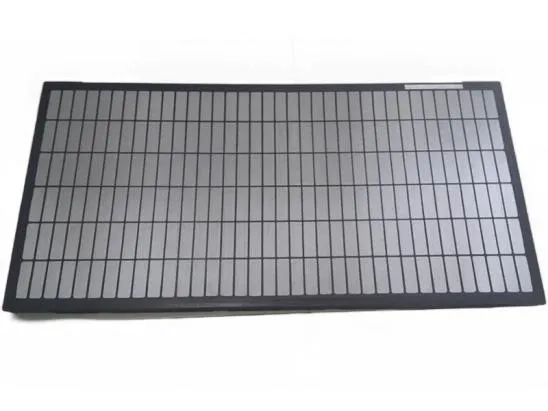

Shale Shaker Screen

Short Description:

Shale shaker screen is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, drilling operations and solid control system.

Send email to us PDF Download

Product Detail

Product Tags

Introduction

Read More About shale shaker screen mesh

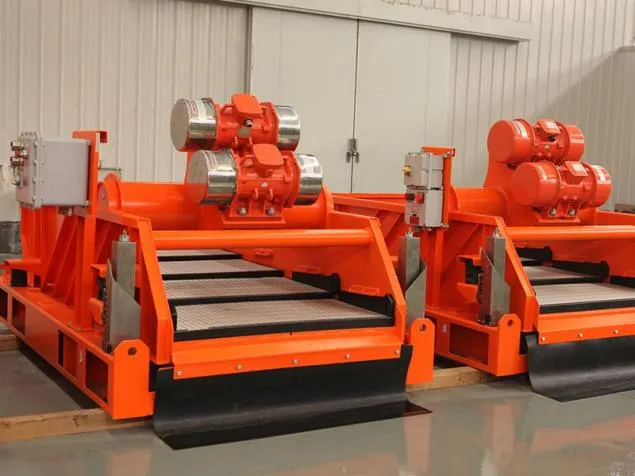

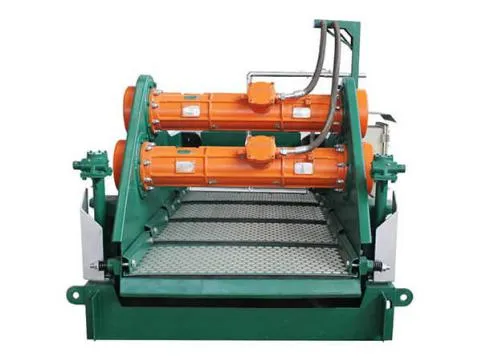

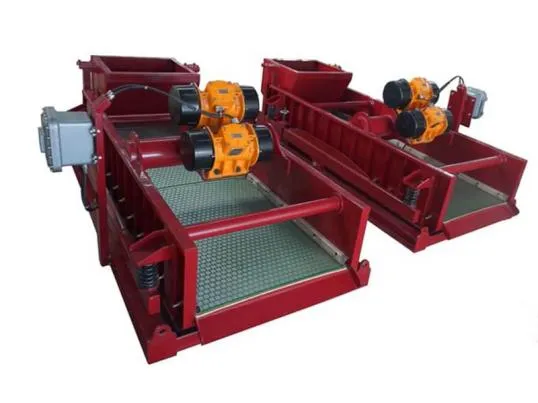

Shale shaker screen is a kind of screen that installed in shale shakers. It is a fine mesh (dual, or triple layered) used for filtering and separating drilling cuttings from mud (drilling fluid).

Shale shaker screen is a mesh screen that is created out of woven metal that goes inside the shale shaker. Whenever solids or cuttings are produced from drilling equipment, they are coated in drilling liquid. When those cuttings are shaken over shale shaker screens, the screen is able to capture all of the solid particles and allow any excess mud to drip through the screen where it can then be deposited back into the tank.

Our shale shaker screen is made of two or three layers of stainless steel wire cloths with different meshes. This structure make shaker screen have good filtering accuracy. Different kinds of shale shaker screen has different features and processing accuracy. For example, wave screen has the best processing efficiency. Steel frame screen with steel support can bearing the highest weight of drilling fluid. You can choose the suitable screen depending on the drilling conditions.

Feature

High strength, high bearing capacity.Good filtering accuracy.
Good processing efficiency.
Wear resistance, corrosion resistance.
Good flexibility, applied to various shale shakers.
No bumps, deformation, nap, flash edge, metal solder spatter, folding, mezzanine and other appearance defects.
Easy to install and maintain.

Specification

Material: stainless steel, carbon steel.
Surface treatment: coating.
Production process: weaving and perforating.
Color: Black, green, blue. Other colors also can be customized.
Type: Steel or composite frame screen, hook strip screen, wave screen.
Standard:ISO 13501, API RP 13C, API RP 13C, GBT 11648, GBT 11650.

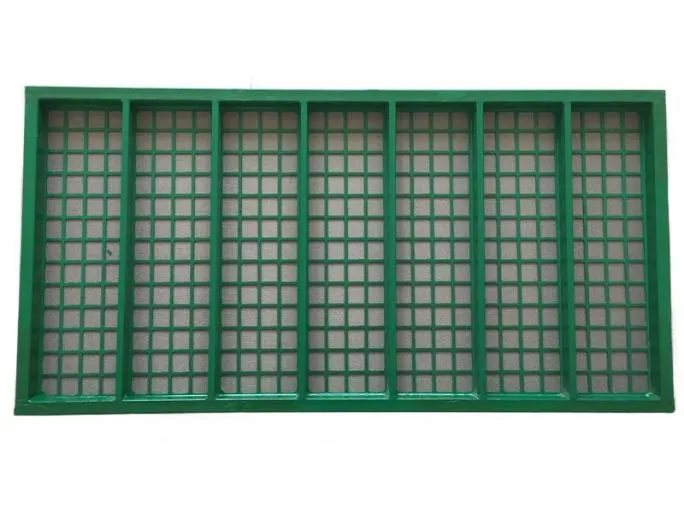

Steel Frame Shale Shaker Screen

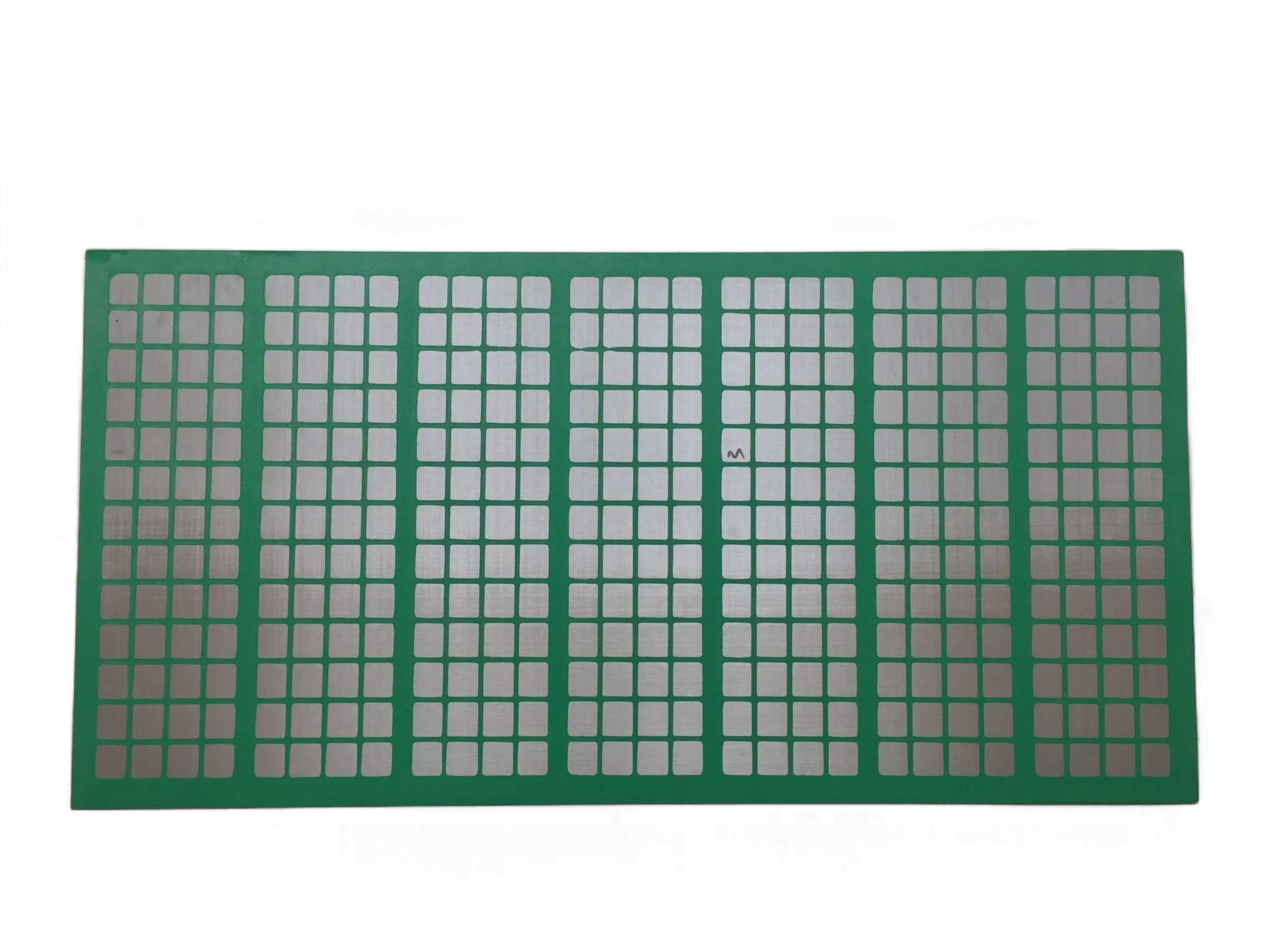

Composite Frame Shale Shaker Screen

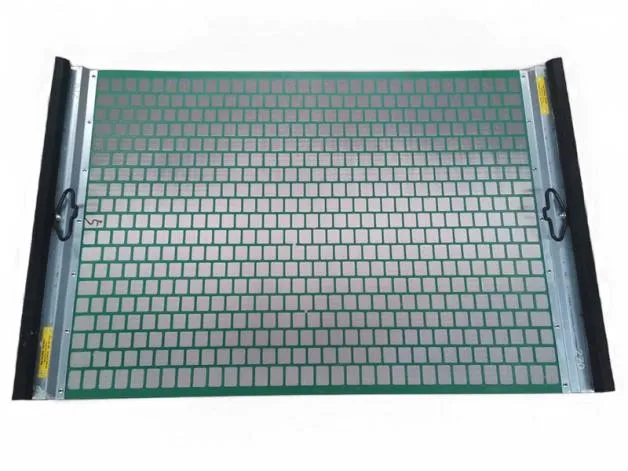

Hook Strip Flat Shale Shaker Screen

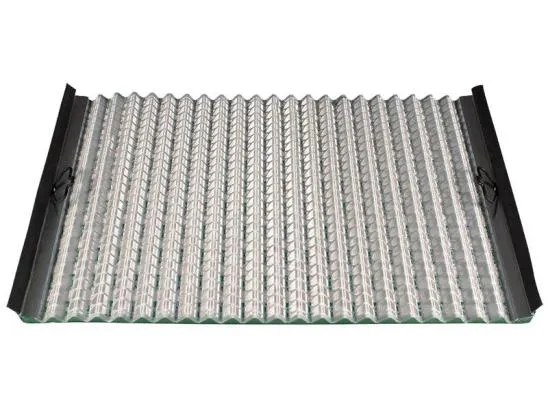

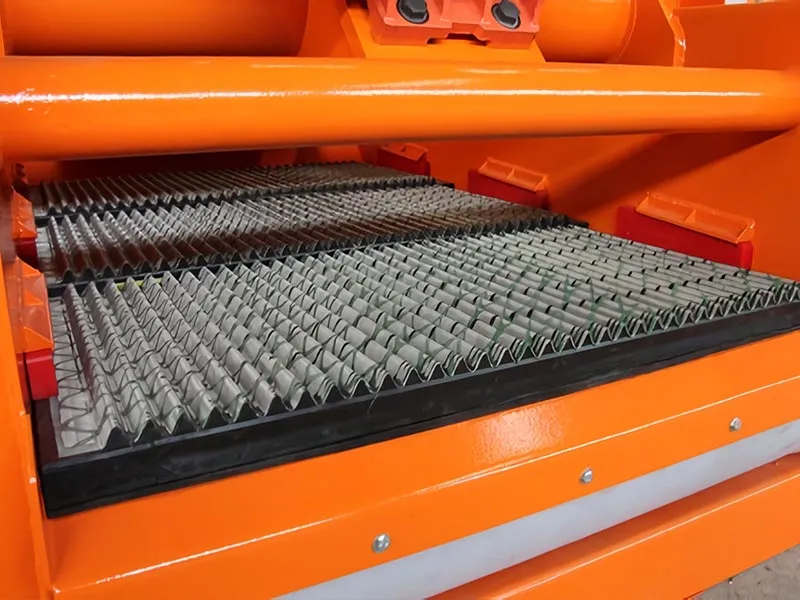

Wave Shale Shaker Screen

Application

Shale shaker screen is widely used in oil drilling, non-excavation horizontal directional crossing, coal bed methane drilling, shale gas drilling, river sludge environmental protection and other mud purification treatment fields.
