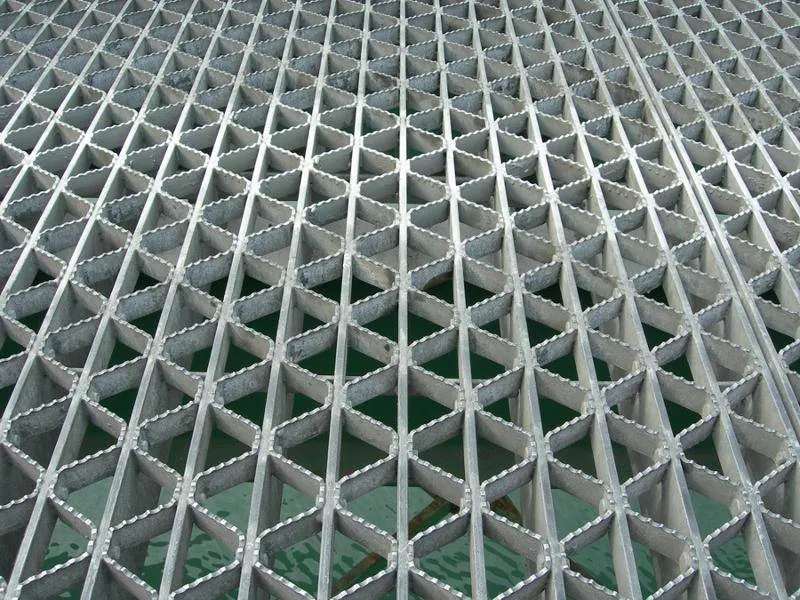

Riveted Grating

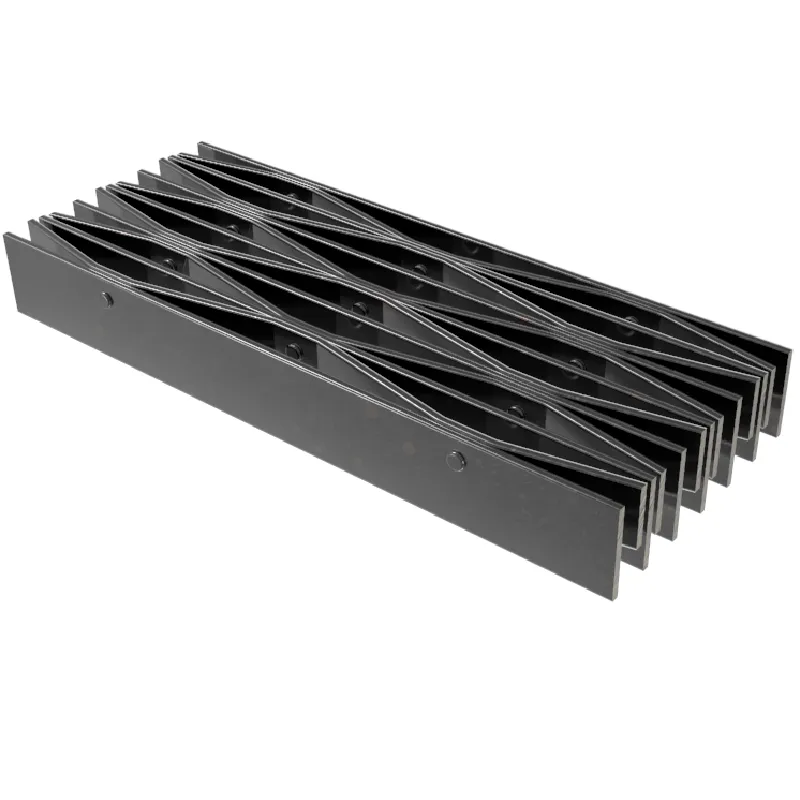

Riveted gratings also can be called riveted bar grating,is manufactured by cold-press riveting straight bearing bars to crimped rectangular flat bars. The oldest form of grating, riveted products offer superior resistance to impact, fatigue, and repetitive loads.
Riveted grating is one of the steel grating products available with high load capacity, flexibility, alkali and acid resistance and anti-slip surface. It is made of carbon steel, stainless steel or aluminum steel. Riveted grating can be widely used as stair treads, walkway, floor, cover and bridge decking.
- High strength.
- High load capacity.
- Light weight of aluminum riveted grating.
- Outstanding chemical stability: alkali and acid resistance.
- Harsh environments resistance.
- Corrosion and rust resistance.
- Extended the lifespan.
- 100% recyclable.
- Material: carbon steel, stainless steel and aluminum.
- Surface treatment: galvanized, painted or mill finished.
- Surface type: Standard plain surface, serrated surface.
|
Specification of RG18 Riveted Grating |
||||
|
Item |
Bearing Bar |
Cross Bar |
Bearing Bar Spacing |
Cross Bar Spacing |
|
RG18-01 |
1" × 1/8" |
3/4" × 1/8" |
1-1/8" |
3", 7" |
|
RG18-02 |
1" × 3/16" |
3/4" × 1/8" |
||
|
RG18-03 |
1-1/4" × 1/8" |
3/4" × 1/8" |
||
|
RG18-04 |
1-1/4" × 3/16" |
3/4" × 1/8" |
||
|
RG18-05 |
1-1/2" × 1/8" |
1" × 1/8" |
||
|
RG18-06 |
1-1/2" × 3/16" |
1" × 1/8" |
||
|
RG18-07 |
1-3/4" × 3/16" |
1" × 1/8" |
||
|
RG18-08 |
2" × 3/16" |
1" × 1/8" |
||
|
RG18-09 |
2-1/4" × 3/16" |
1" × 1/8" |
||
|
RG18-10 |
2-1/2" × 3/16" |
1" × 1/8" |
||
|
Specification of RG12 Riveted Grating |
||||
|
Item |
Bearing Bar |
Cross Bar |
Bearing Bar Spacing |
Cross Bar Spacing |
|
RG12-01 |
1" × 1/8" |
3/4" × 1/8" |
3/4" |
3", 7" |
|
RG12-02 |
1" × 3/16" |
3/4" × 1/8" |
||
|
RG12-03 |
1-1/4" × 1/8" |
3/4" × 1/8" |
||
|
RG12-04 |
1-1/4" × 3/16" |
3/4" × 1/8" |
||
|
RG12-05 |
1-1/2" × 1/8" |
1" × 1/8" |
||
|
RG12-06 |
1-1/2" × 3/16" |
1" × 1/8" |
||
|
RG12-07 |
1-3/4" × 3/16" |
1" × 1/8" |
||
|
RG12-08 |
2" × 3/16" |
1" × 1/8" |
||
|
RG12-09 |
2-1/4" × 3/16" |
1" × 1/8" |
||
|
RG12-10 |
2-1/2" × 3/16" |
1" × 1/8" |
||
Riveted grating is widely used in the bridge constructions as heavy duty bridge grating and used as trench cover, drainage cover for convenient draining.
-

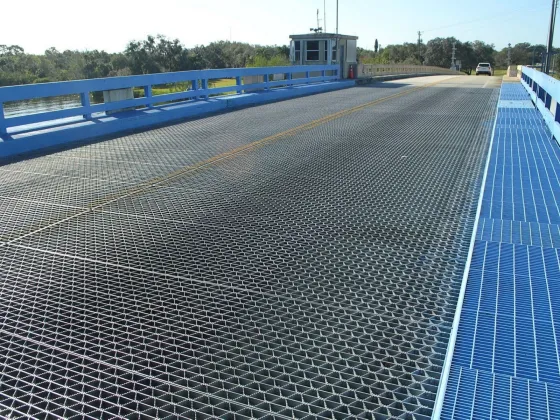

Riveted Grating Bridge Decking
-

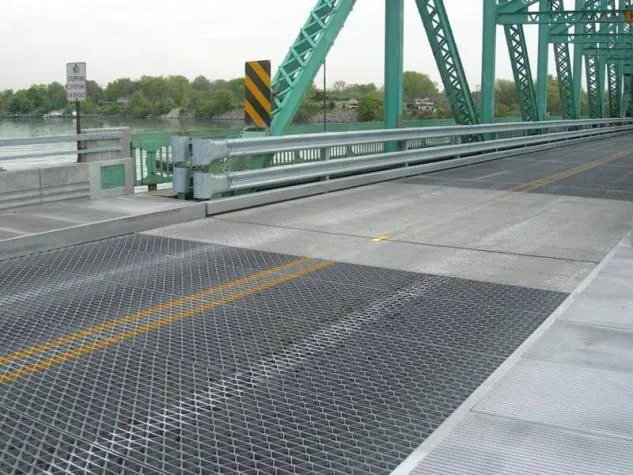

Riveted Steel Grating Bridge Decking
-

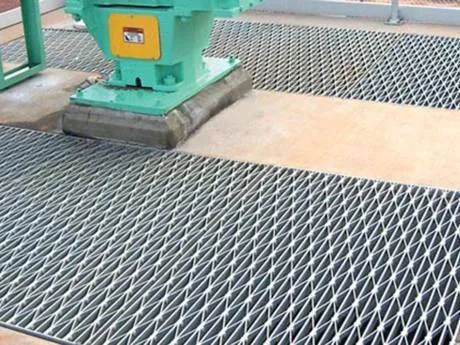

Riveted Grating Platform
-

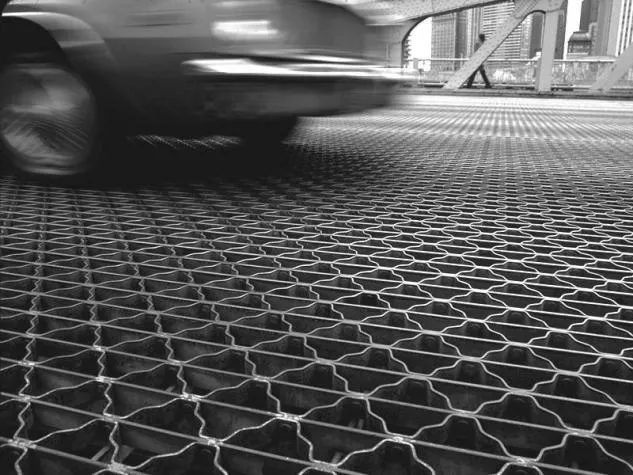

Traffic Surface Riveted Grating
